The motorised louvered roof pergola — an outdoor room that opens, closes and drains itself.

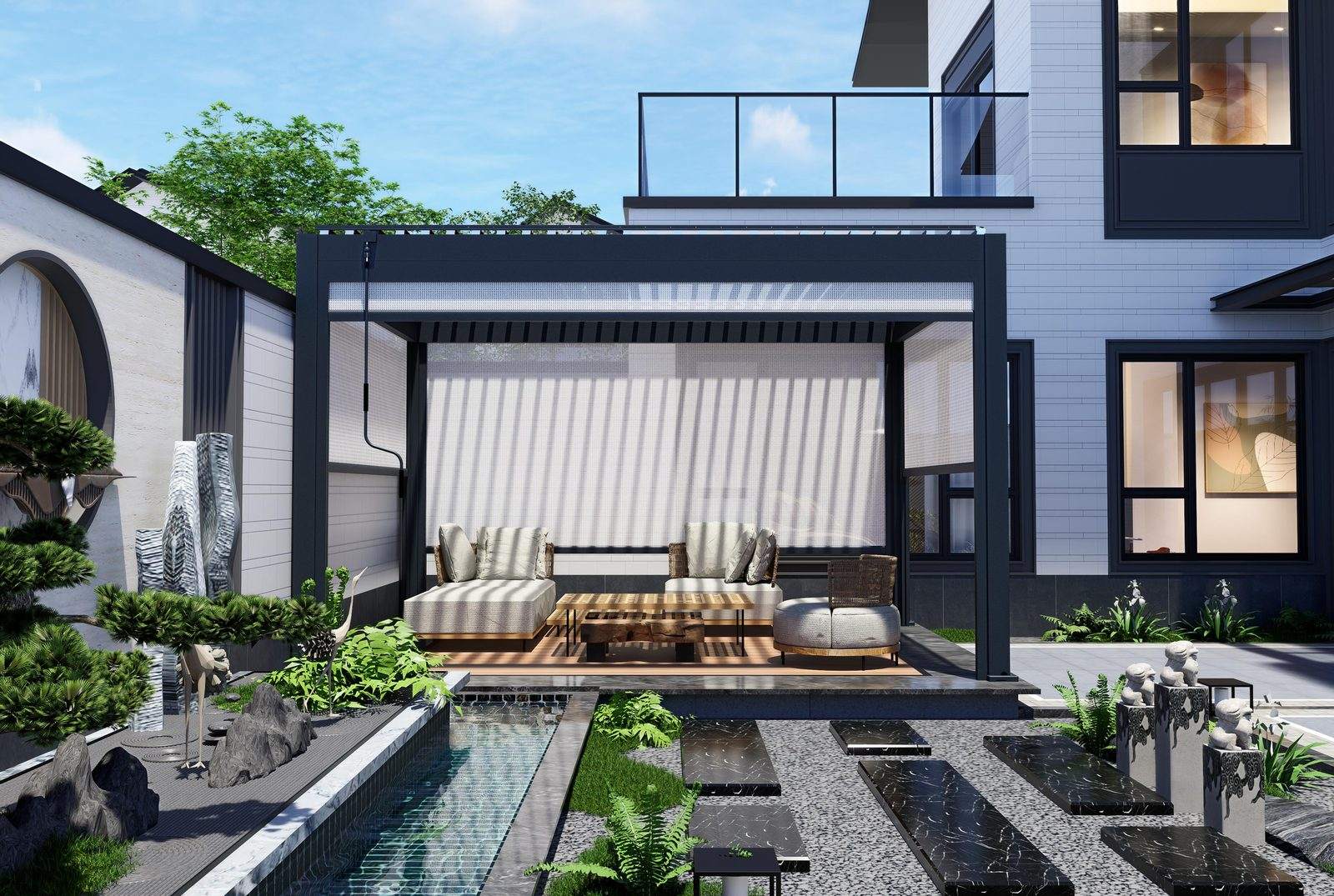

The louvered pergola is the most specified product in the TUSCANY range: a motorised aluminium roof whose blades tilt through a full 90 degrees, so one structure gives open shade in summer and a closed, rain-shedding roof in winter. Six profiles are produced in-house - 145, 147, 163, 175, 180 and 220 - all built on a 6063 aluminium frame with high-density powder coating. Importers and project contractors specify it for villa terraces, hotel gardens, restaurant patios and rooftop lounges, where a fixed canopy cannot answer wind, rain or snow.
Choosing the right specification
Model numbers follow the blade and beam profile rather than the footprint, so the right choice depends on your opening size, the surface you are fixing to and your local wind and snow load. Send us the opening dimensions, the mounting surface and the destination region, and our engineers will return the recommended type, post layout and blade count. Manual and motorised versions are built on the same frame, so you can offer both price points from one structure.
Models
Key specifications
- Louver blades open and close through a flip angle of up to 90°, adjusting both shade and airflow
- Double-layer blades with an integrated water channel — rain runs from the blade into the inner channel, so the roof does not drip when reopened after heavy rain
- Hidden drainage: blade channel → inner channel → post, discharged below ground
- Snow load rated 100–110 kg/m²; roof withstands 40–50 ml/s/m² rainfall for 2 minutes
- 6063 aluminium alloy with high-density powder coating — rust-free, maintenance-free, 20-year colour retention
- 220 type: louver 220 × 55 mm (1.5 mm, 2.0 mm with LED), beam 280 × 46.8 × 2.5 mm, posts 150 × 150 × 1.7 mm or 180 × 180 × 2.0 mm
- 220 type: single set max 6 × 5 m with four posts, blade length up to 5 m, default height 2.7 m

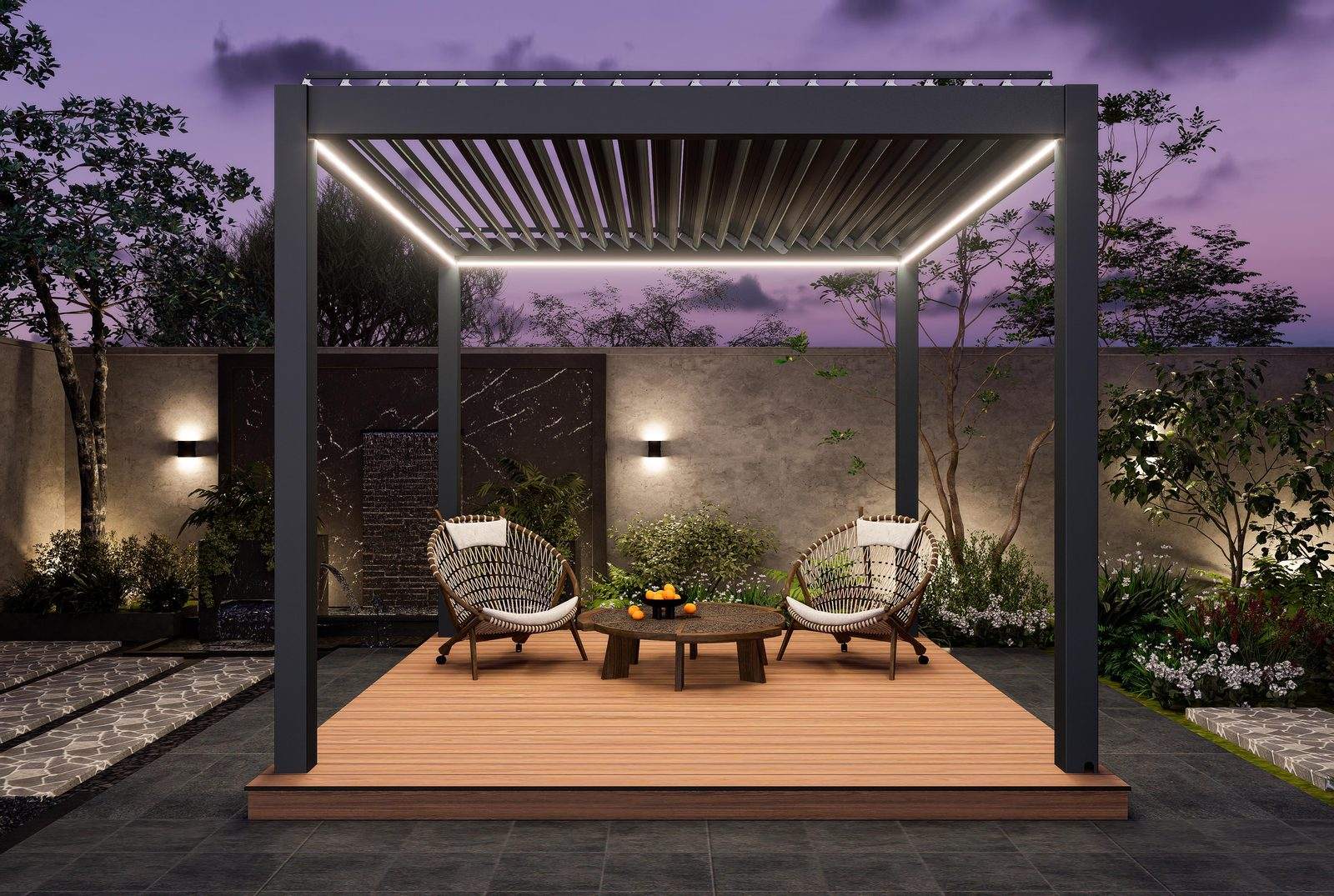

- LED strips built into the cross beams and inner channel, remote controlled, waterproof silicone seal
- Frame colours: dark grey, white, coffee, black
- Manual or motorised operation
What we supply for this line
- Frame profiles: posts, cross beams and double-layer louver blades
- Concealed drainage path - blade channel, inner channel and post outlet
- Base plates, brackets and anchoring hardware
- Assembly drawings, with installation video and CAD files on request
- Optional motor, wireless remote and integrated LED strips
- Export packing; private-label cartons and manuals for OEM orders
Ordering & trade terms
The questions importers and project contractors ask first. Full details are on the FAQ page; the terms below apply to this product line unless your project is quoted otherwise.
Aluminum Pergola - frequently asked questions
How large can a single louvered pergola be?
The 220 type covers up to 6 x 5 m on four posts, with a blade length of up to 5 m and a default height of 2.7 m. Where a wider area has to be covered, bays are linked as a multi-unit structure rather than extending the blade span further.
Does the roof drip when it is reopened after rain?
No. The blades are double-layer with an integrated water channel. Rain runs from the blade into the inner channel and is carried through the post to discharge below ground, so the roof does not drip when it is reopened after heavy rain.
What load is the louvered roof designed for?
The roof is rated to 100 to 110 kg/m2 snow load and sheds rainfall of 40 to 50 ml/s/m2 for two minutes. Blade and beam sections are sized per model; our engineers confirm the right type for your region on request.
Manual or motorised, and can I add lighting?
Both are produced on the same frame. Motorised units ship with a wireless remote and can be specified with LED strips built into the cross beams and the inner channel, sealed with a waterproof silicone gasket. Frame colours are dark grey, white, coffee and black, with custom colours on OEM orders.
