Full Cassette Awning — Heavy Duty
重型全盒遮阳篷
The premium full-box awning: heavy arms, hidden drainage and dimmable LED, built for large spans.

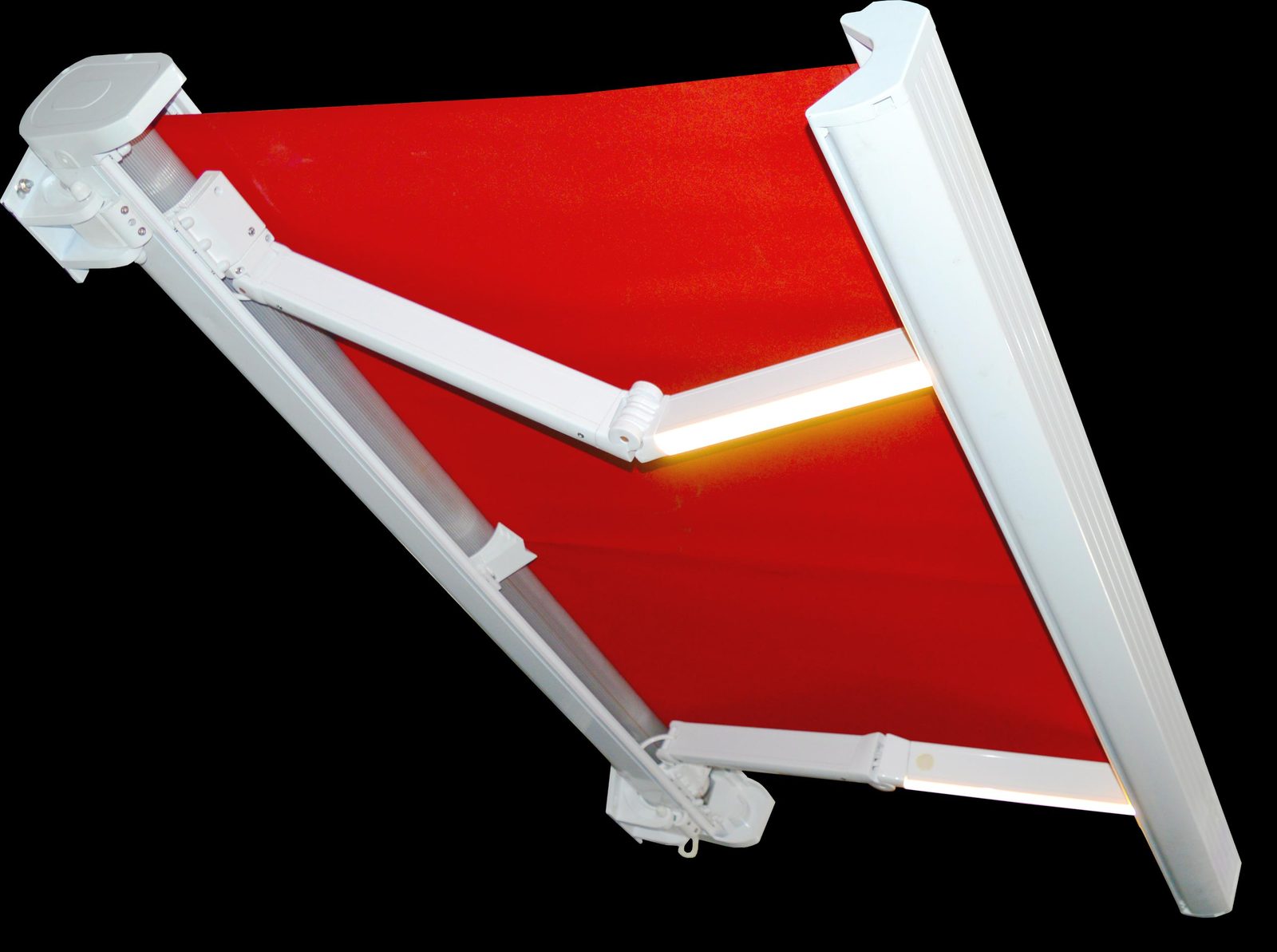

The heavy-duty full cassette awning is the top of the folding-arm range: fabric and curved arms retract completely into a sealed aluminium box, and the arms are built heavier than anything else we produce (75 mm arm width, 40 mm side arm, 4 mm wall). It is specified where spans are large and where the facade has to stay clean - a single set reaches 7 x 4 m with hidden drainage and an integrated balance system.
Choosing the right specification
Choose this unit when the awning is a visible part of the architecture: the full cassette keeps the fabric out of sun, rain and dust and gives the elevation one continuous line. It is also the version to quote for hotels, clubs and restaurants where the awning runs daily and the arms have to hold a large projection without sagging. If your project is a residential terrace with a normal span, the Classical series delivers the same sealed look at a lighter cost.
Models
Key specifications
- Single set maximum 7 × 4 m, minimum 2 × 1.5 m
- Arm width 75 mm, side arm width 40 mm, arm thickness 4 mm
- Full cassette design — fabric and curved arms retract completely into the box
- Spanish imported fabric with 10-year colour fastness (domestic fabric 2 years)
- Waterproof and dimmable LED strips; stainless steel chain drive
- Arm angle adjustable around 30°; hidden drainage system; integrated balance system
- Aluminium alloy frame, high-density powder coating, anti-rust
- Frame colours: frosted black, glossy white or customised
What we supply for this line
- Sealed full cassette box with stainless steel chain drive
- Heavy-duty curved arms, 75 mm arm width and 4 mm wall thickness
- Hidden drainage system and integrated balance system
- Waterproof, dimmable LED strip
- Spanish imported fabric with 10-year colour fastness
- Export packing; private-label cartons and manuals for OEM orders
Ordering & trade terms
The questions importers and project contractors ask first. Full details are on the FAQ page; the terms below apply to this product line unless your project is quoted otherwise.
Full Cassette Awning — Heavy Duty - frequently asked questions
What sizes does the heavy-duty full cassette cover?
A single set runs from 2 x 1.5 m minimum to 7 x 4 m maximum. The arm angle is adjustable around 30 degrees, and the integrated balance system keeps the fabric taut across the full projection.
What does "full cassette" actually protect?
Both the fabric and the curved arms retract completely inside the box when the awning is closed, so the fabric is not exposed to sun, rain or dust and the arms are not left on show. The frame is aluminium alloy with high-density powder coating for anti-rust protection.
How long does the fabric keep its colour?
Units specified with Spanish imported fabric carry 10-year colour fastness. If you prefer a domestic fabric the same awning can be supplied at 2-year colour fastness, which is the usual route for lower-cost retail programmes. Motors are Dooya or AOK.
What colours are available?
Frosted black and glossy white are standard, with customised colours available on OEM and ODM orders to match the facade.
