PVC Pergola Roof

折叠顶篷(PVC 凉亭顶)

A motorised retractable roof that turns an open courtyard into an all-weather room — up to 11 m of travel.

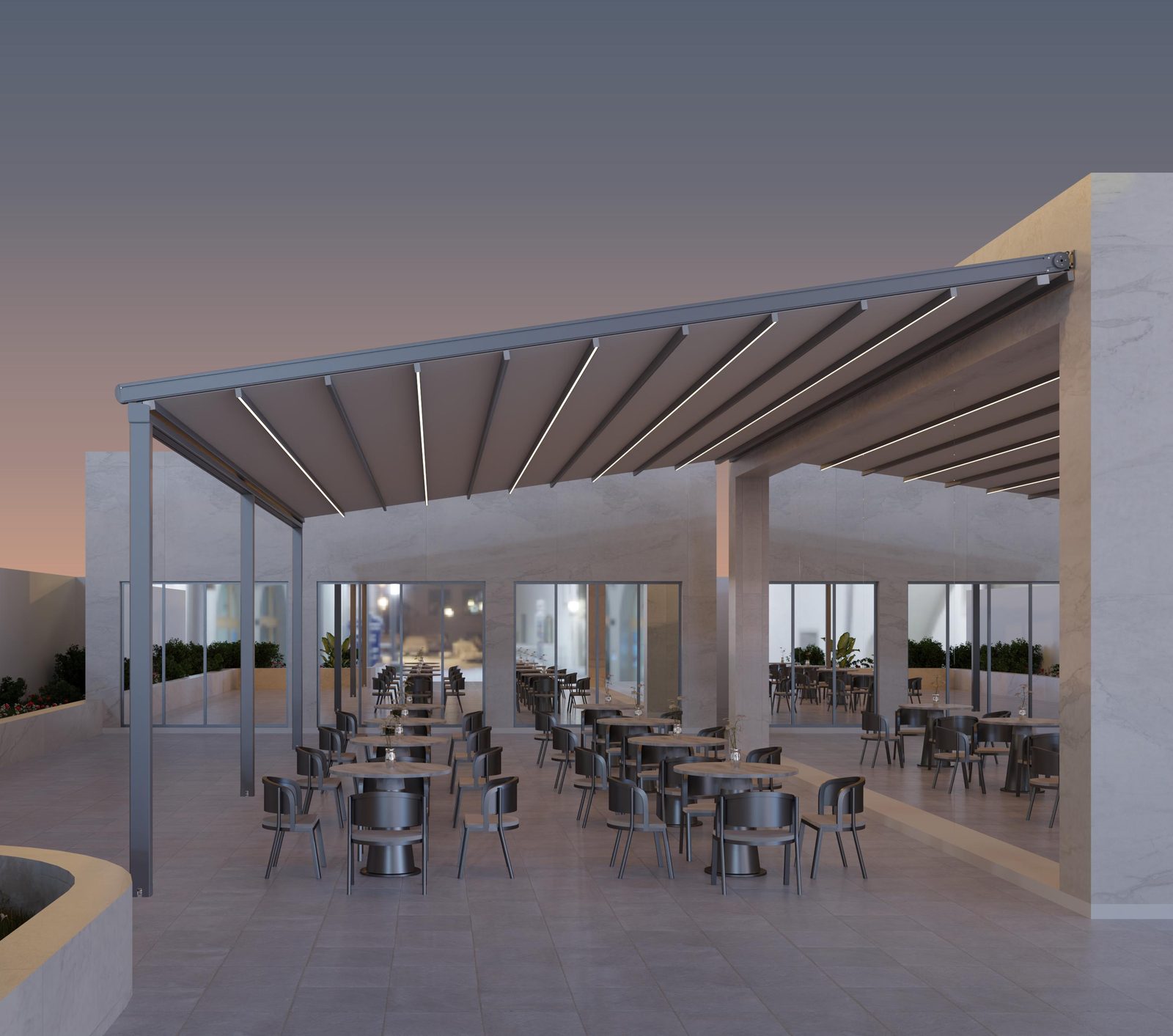

The folding PVC pergola roof turns an open courtyard, restaurant terrace or hotel poolside into a room that can be closed and reopened at will. It is a motorised retractable roof that travels up to 11 m on the standard 5 x 7 m set, built on a 6063 aluminium frame and covered in 850 g/m2 diamond-patterned flame-retardant PVC with a polyester reinforcement. It is the answer where buyers need a large waterproof span without a permanent structural roof.

Choosing the right specification

This line is chosen for span and weather rather than for fine aesthetics: it is fully waterproof and rated to wind speeds up to 62 km/h (Level 7), and the same unit can be mounted seven different ways. Tell us whether you are fixing to a courtyard wall, an existing steel frame, a freestanding column base or a flat roof, and we will quote the matching mounting arrangement so your installers are not improvising on site.

Models

Single setDouble combinationMulti-combination

Key specifications

  • Standard single set 5 × 7 m; custom extension up to a maximum of 11 m
  • 850 g/m² heavy-duty diamond-patterned flame-retardant PVC + polyester fabric
  • Wind resistance up to 62 km/h (Level 7); fully waterproof design
  • Motor driven with wireless remote; 6063 aluminium alloy, high-density powder coating
  • Waterproof silicone LED strip at 3000 K with 450–500 mm horizontal bar spacing
  • Fabric: radial tensile strength 3312 N/5 cm, latitudinal 2898 N/5 cm; UV resistance level 4; GB/T5455-2014 fire rating; 10-year warranty
  • Fabric colours white, yellow, grey; frame colours dark grey, white, coffee, plus custom

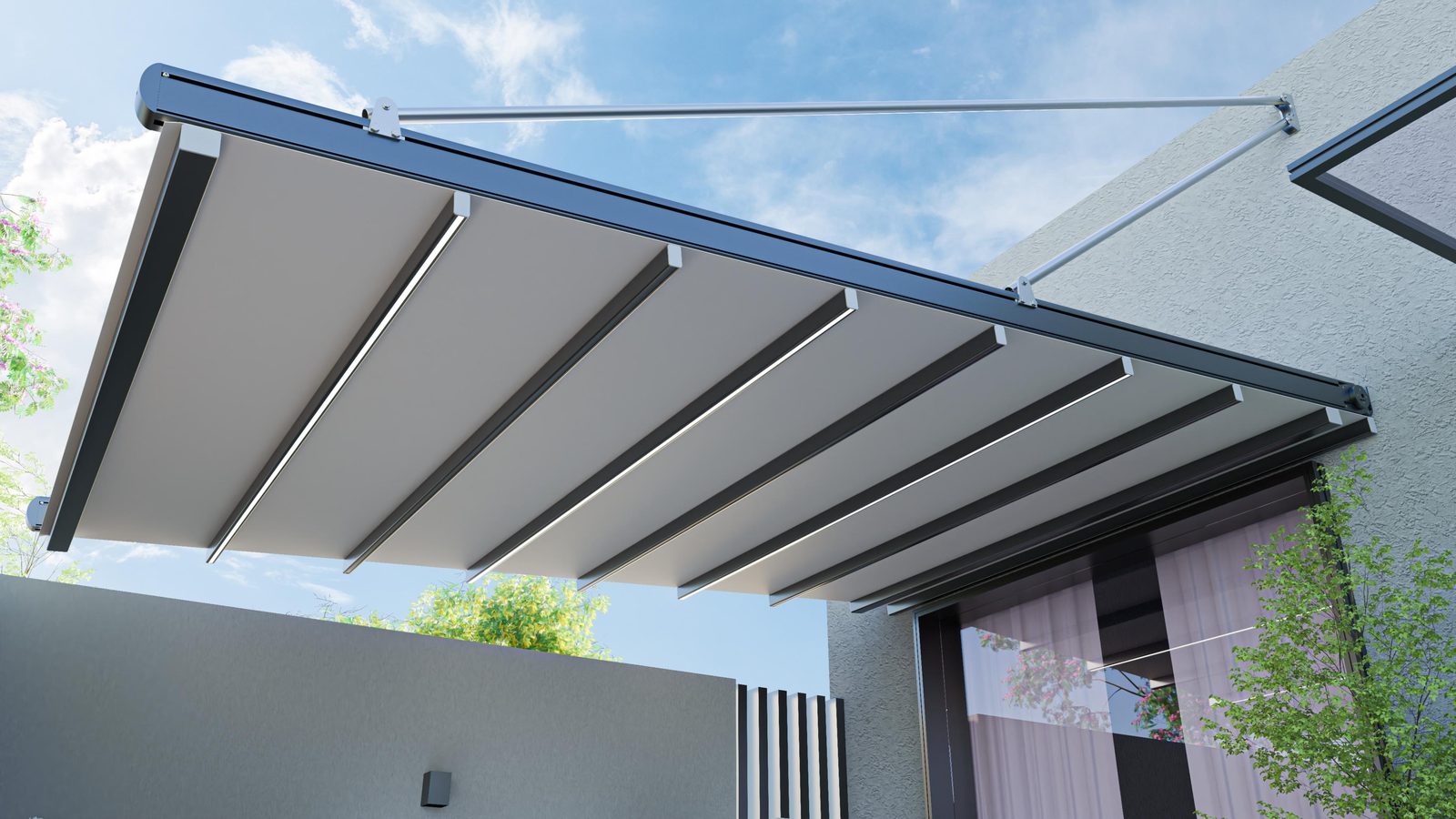

  • Mounting types: column support, diagonal tie rod, A-frame column, wall clamp, wall support, steel structure support, flat roof type

What we supply for this line

  • Aluminium frame profiles with high-density powder coating
  • 850 g/m2 flame-retardant PVC/polyester roof sheet
  • Motor, wireless remote and waterproof silicone LED strip
  • Selected mounting arrangement: column support, diagonal tie rod, A-frame column, wall clamp, wall support, steel structure support or flat roof type
  • Assembly drawings and installation support
  • Export packing; private-label cartons and manuals for OEM orders

Ordering & trade terms

The questions importers and project contractors ask first. Full details are on the FAQ page; the terms below apply to this product line unless your project is quoted otherwise.

MOQFrom 100 units per model. For ODM projects with custom dimensions, colour or branding, contact us to discuss a lower starting quantity.
SamplingSample built in 5-7 business days for your approval before bulk production.
Mass production4-6 weeks after sample approval, depending on order volume and season.
Warranty12 months on motor and structure. Spare parts remain available for the life of the model, with technical documentation for installers.
PaymentT/T and L/C for bulk orders; PayPal or Western Union for samples and small orders.
ShippingEXW, FOB and CIF. We quote the most economical loading port for your destination and can consolidate mixed orders.
ComplianceCE (LVD) compliant - certificate CLSC25032168386, valid to 2030. Factory verified by Intertek through Supplier Assessment and Onsite Check.
OEM / ODMPrivate label with custom logo, RAL frame colour, fabric selection, packaging and instruction manuals.

PVC Pergola Roof - frequently asked questions

What is the maximum span of a folding PVC pergola roof?

A standard single set is 5 x 7 m and can be extended to a maximum travel of 11 m. Wider areas are covered by combining sets rather than by stretching a single unit.

How does it cope with wind and rain?

The roof is fully waterproof and rated to wind speeds up to 62 km/h (Level 7). The fabric is an 850 g/m2 diamond-patterned PVC with polyester reinforcement, with a radial tensile strength of 3312 N/5 cm and a latitudinal strength of 2898 N/5 cm.

What mounting options do you offer?

Seven arrangements are produced: column support, diagonal tie rod, A-frame column, wall clamp, wall support, steel structure support and flat roof type. This lets the same roof be fitted to a courtyard wall, an existing steel structure or a freestanding base without bespoke fabrication.

What is the fire rating and warranty?

The fabric is tested to GB/T5455-2014 for flame retardancy with UV resistance level 4, and carries a 10-year warranty. Fabric colours are white, yellow and grey; frame colours are dark grey, white and coffee, plus custom.
